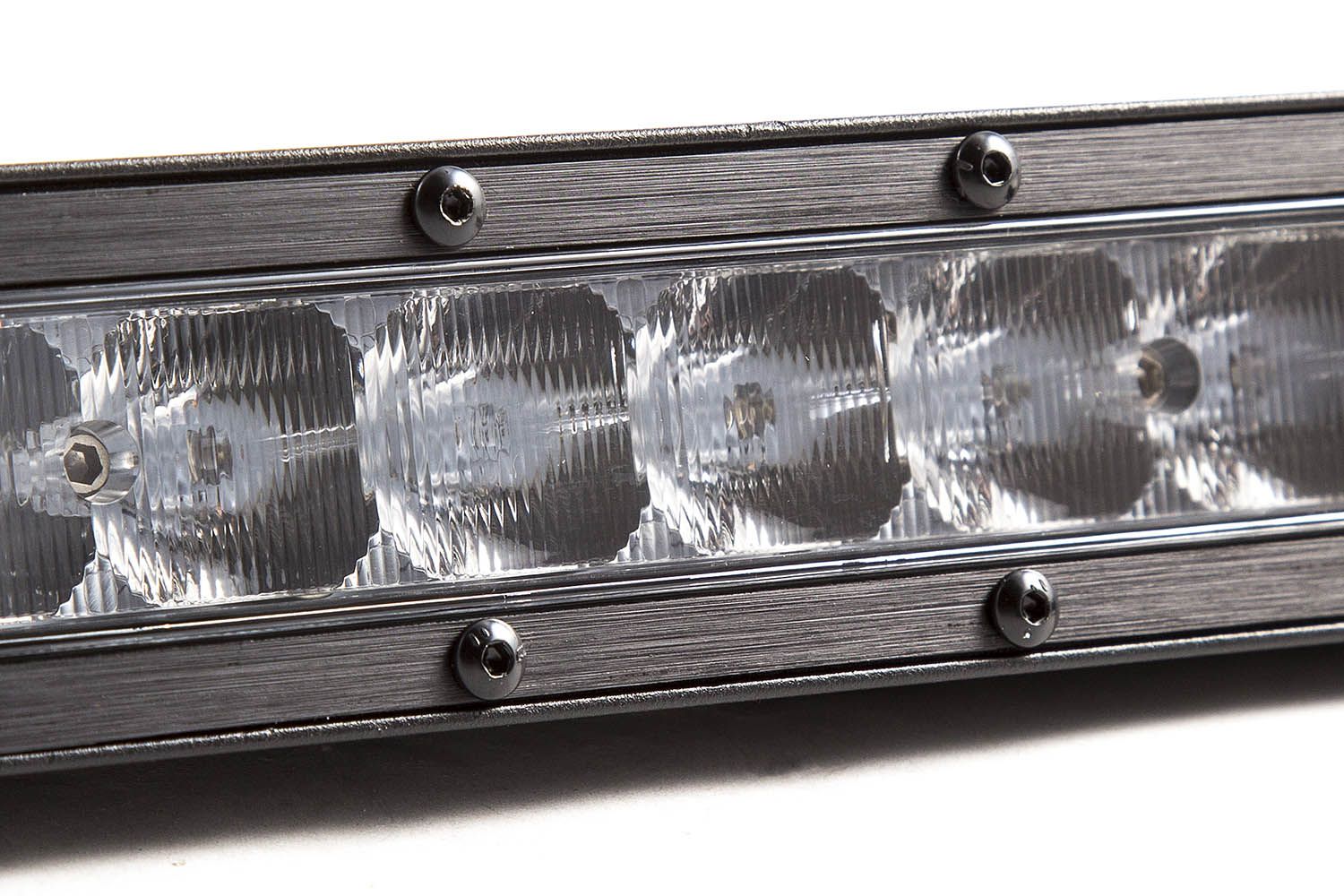

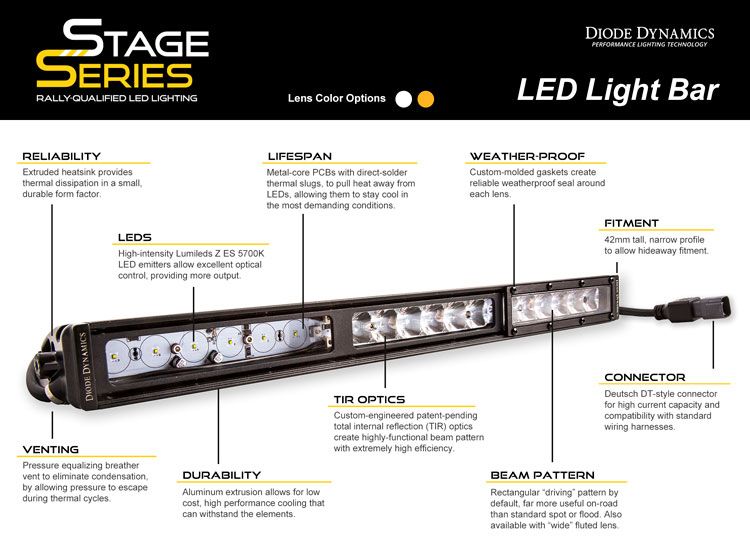

- Advanced TIR optics provide high efficiency and focus
- High-intensity automotive-type LEDs with amber color

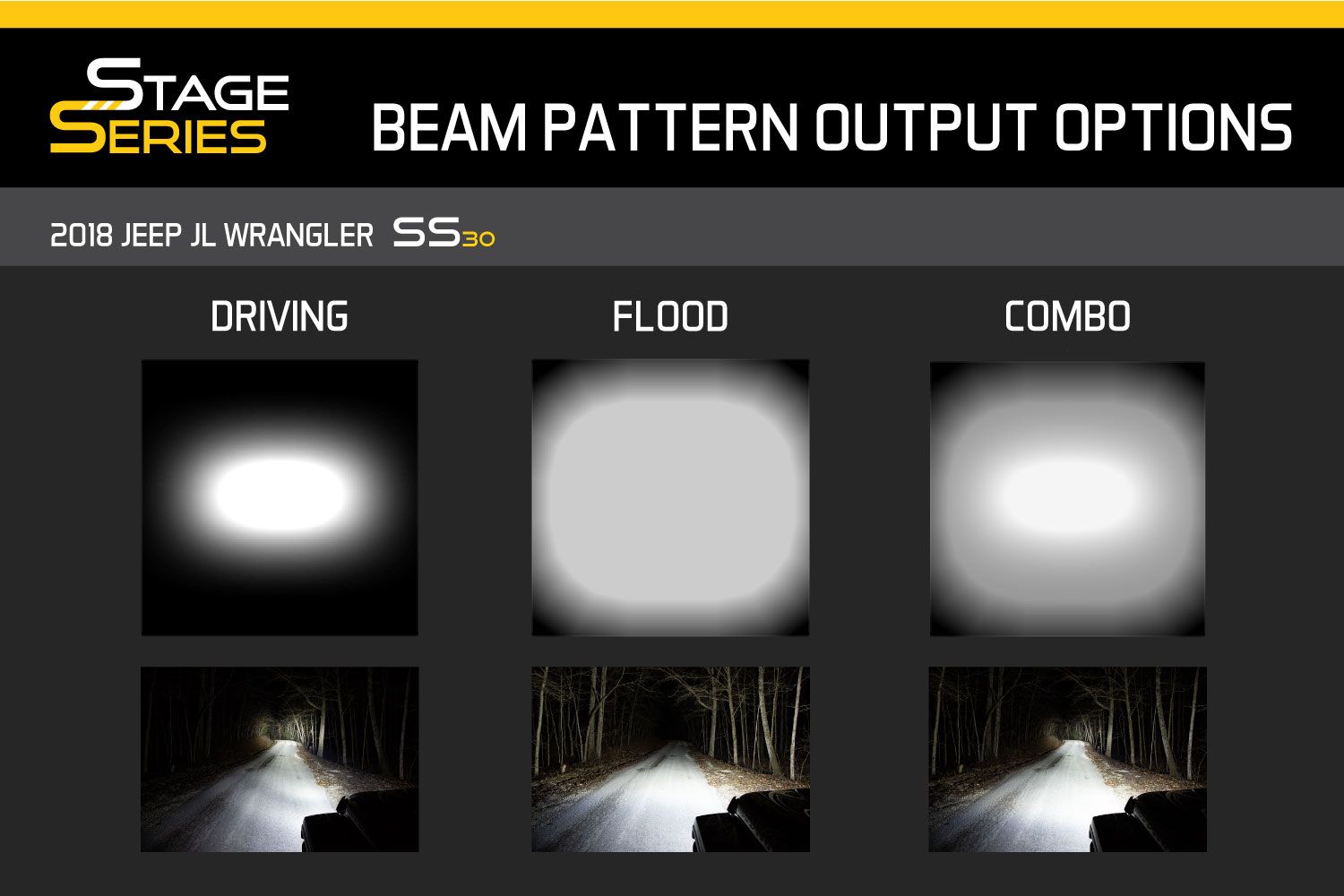

- Available in Driving, Flood, or Combo beam patterns
- Slim 42mm housing for low-profile fitment
- Durable matte powdercoated extrusion
Color Temp (CCT): 6000K
Beam Angle: Driving, 20°x8°, Combo (Driving and Flood), Flood, 80°x50°
Power (watts): 137.2
Operating Voltage: 9-24V
Current (amps @ 14V): 9.8
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES
Connector(s): Deutsch DT Input
Cooling: Passive, heatsink
Intrusion Ratings: IP68 Waterproof
Product Dimensions (in): 31x3x1.63 If you would like CAD for your project, please contact us.
