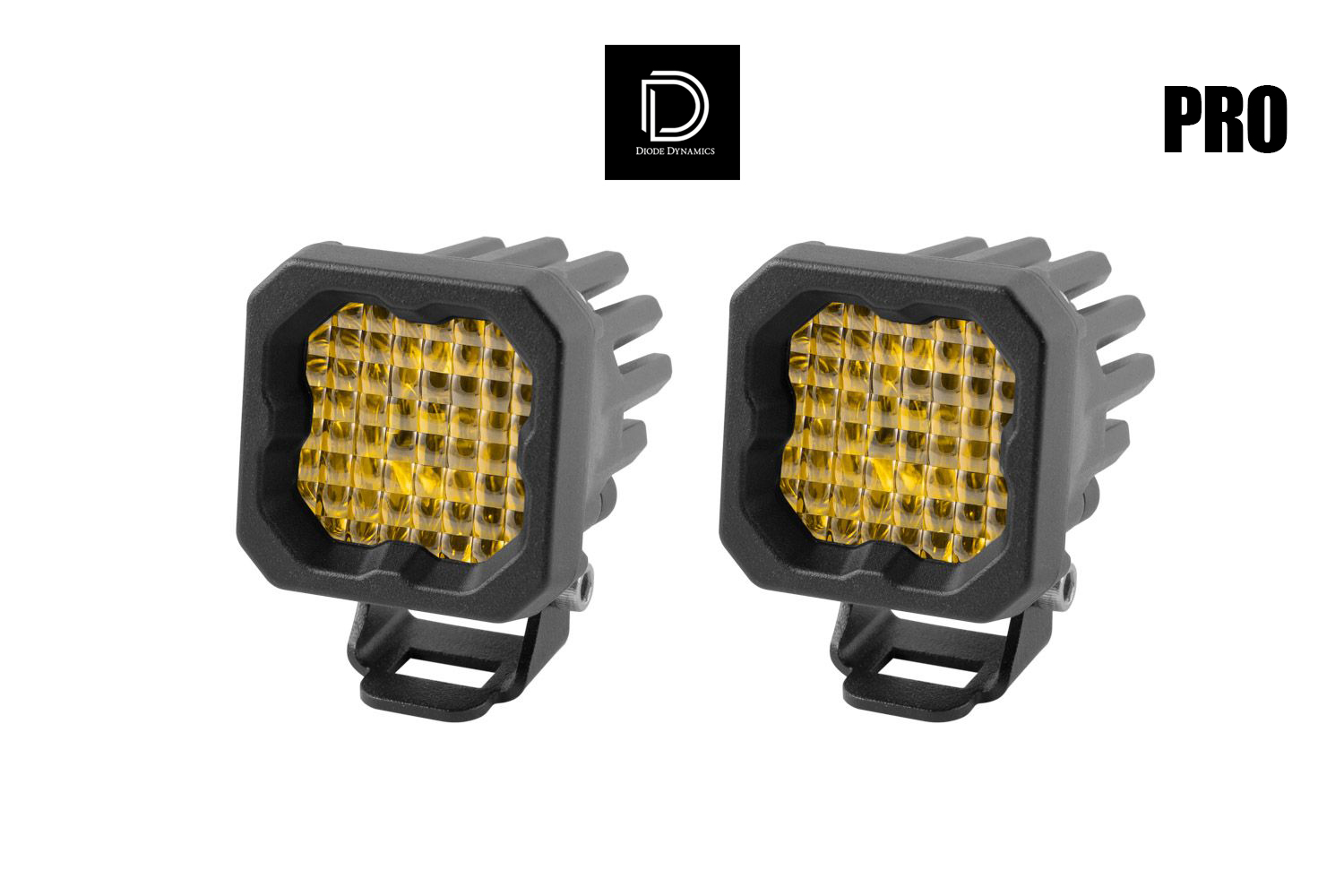

- Ultra-compact, single-LED form factor
- High-intensity 10-watt LED chip
- Backlighting in a brilliant amber color
- Pin-fin heatsink design, for superior thermal dissipation
- Integrated Deutsch-style connector
- Designed, torture-tested and assembled in USA
Color Temp (CCT): 3000K
Power (watts): Main Beam: 19, Backlight: 0.3
Operating Voltage: 9-16V
Current (amps @ 12.8V): Main Beam: 1.5, Backlight: 0.024
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Cree XHP50
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Cooling: Passive, Pin-Fin heatsink
Compliance Ratings: SAE J575 Durability Test
Intrusion Ratings: IP67 Weatherproof
Product Dimensions (in): 2 x 2 x 2.4
