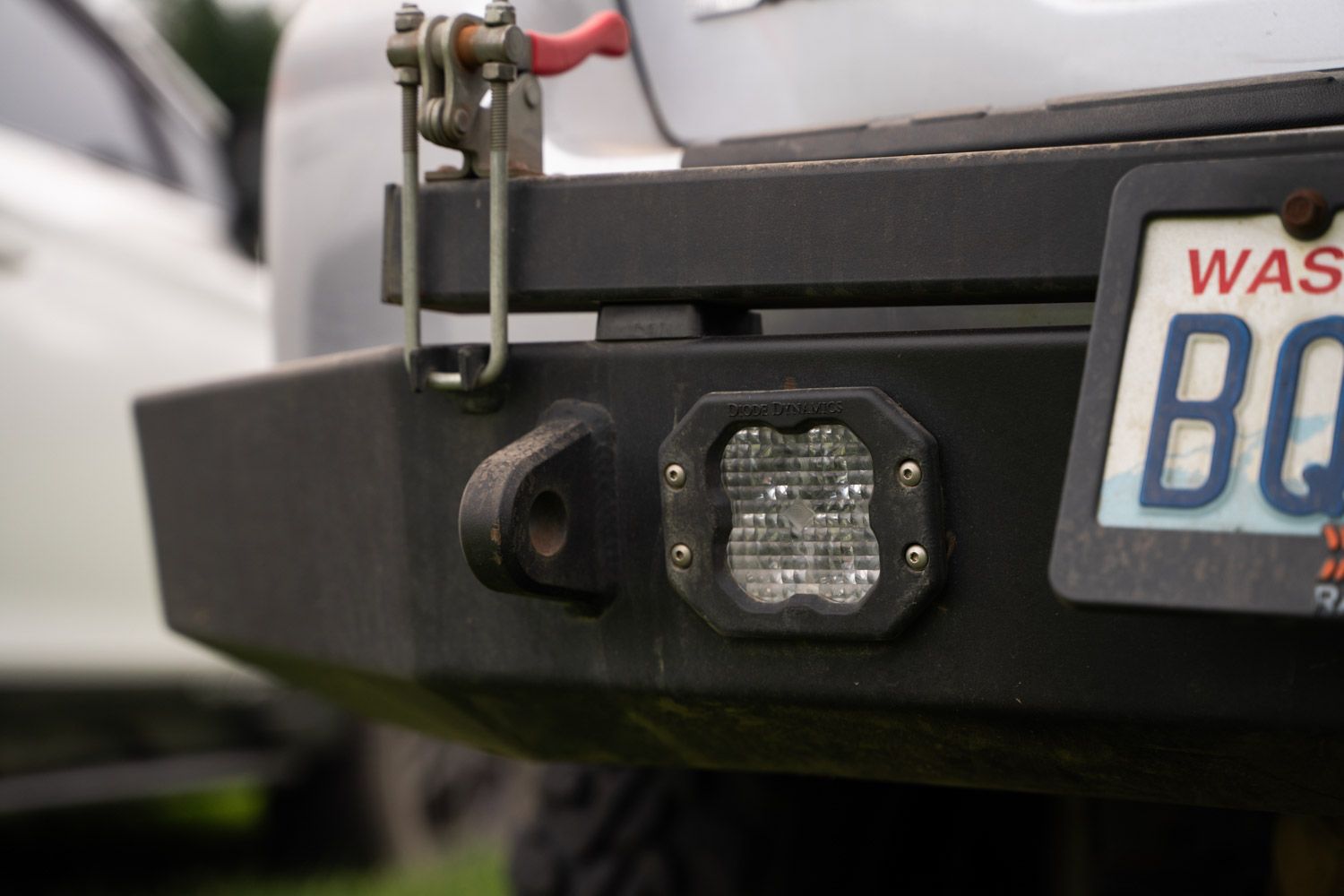

- Allows for flush installation on bumpers and truck beds
- Advanced TIR optics provide high efficiency and focus

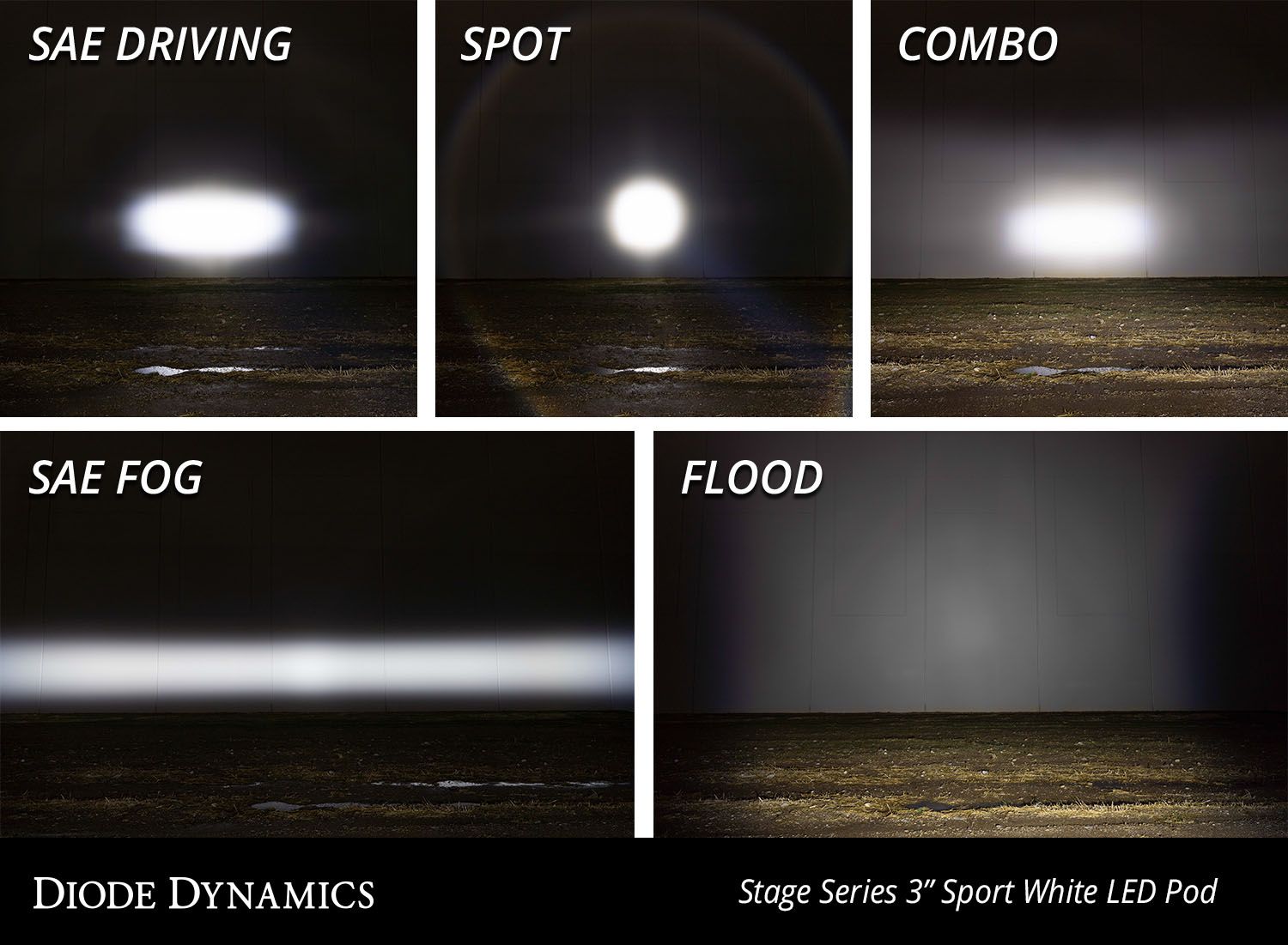

- Available in SAE Driving, SAE Fog, Flood, or Combo beam patterns
- Pin-fin heatsink design, for superior thermal dissipation
- Integrated Deutsch-style connector
- Durable powdercoated aluminum construction
- Engineered and Assembled in USA

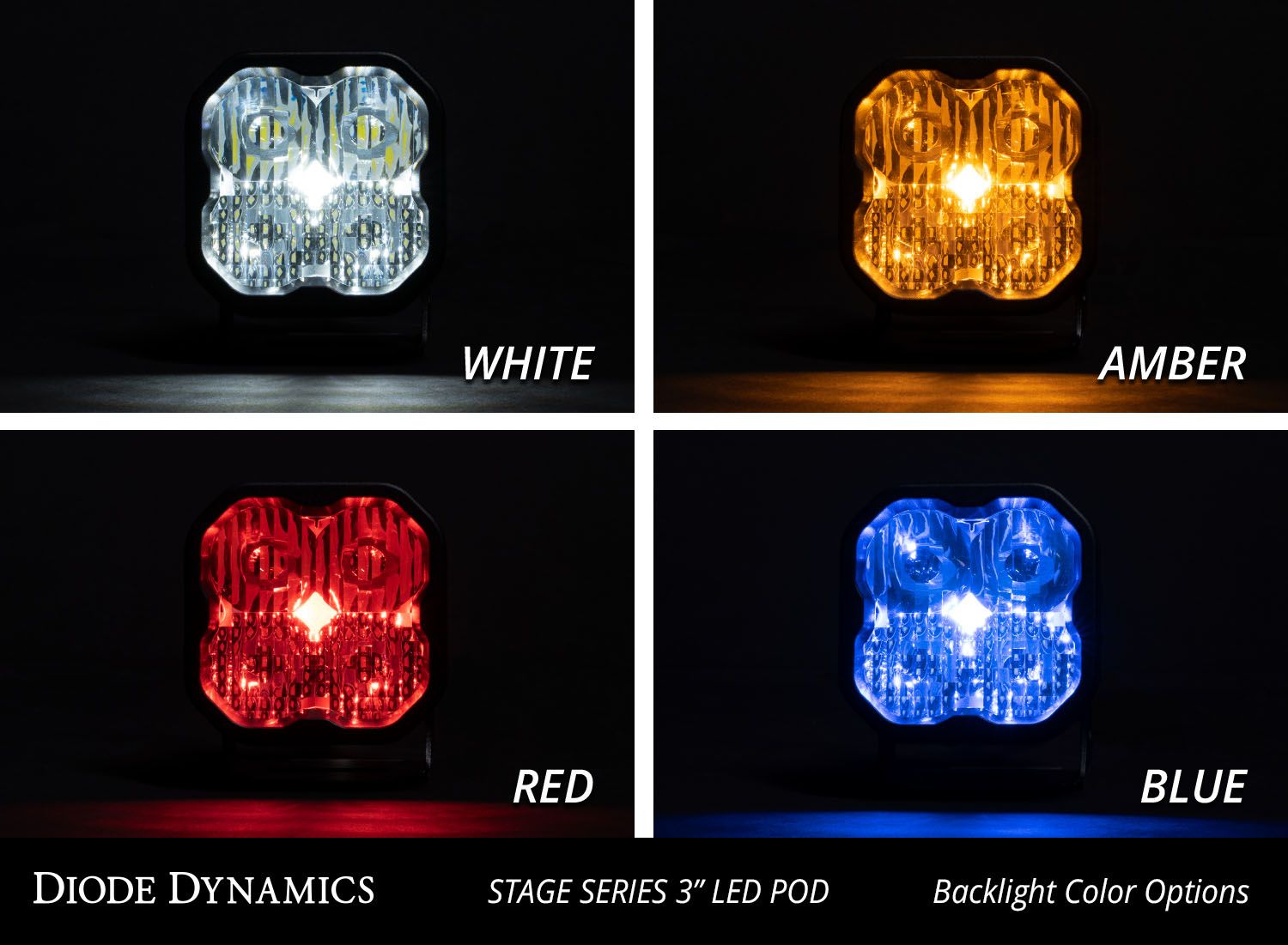

Operating Voltage: Backlit: 9-30V, Non-Backlit: 9-16V
Color Temp (CCT): 6000K
Power (watts): Main Beam: 36, Backlight: 0.4
Current (amps @ 12.8V): Main Beam: 2.7, Backlight: 0.03
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Cree XP-L HI
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Cooling: Passive, Pin-Fin heatsink
Intrusion Ratings: IP69K Waterproof, High Pressure
Product Dimensions (in): 3.75 x 4.75 x 2.4
100% Satisfaction Guarantee
