Introducing the Stage Series C1 LED Headlight Kit for the 2017-2025 Can-Am Maverick X3! This bolt-on, plug-and-play headlight kit allows you to mount six SSC1 LED Pods in place of the factory headlights. Using three highly functional beam patterns, this kit gives you a significant increase in light output over the stock units with more functionality. Constructed using highly durable powdercoated stainless steel and polycarbonate lenses, this kit was built to withstand whatever you throw at it!
Main Beam Power (watts): Sport: 12.8, Pro: 19
Backlight Power (watts): 0.3
Main Beam Current (amps @ 12.8V): Sport: 1, Pro: 1.5
Backlight Current (amps @ 12.8V): 0.024
Measured Lumens: 2,300 lm
Intensity (cd): Wide: 5,400 cd, Spot: 23,000 cd
Color Temp (CCT): 6000K

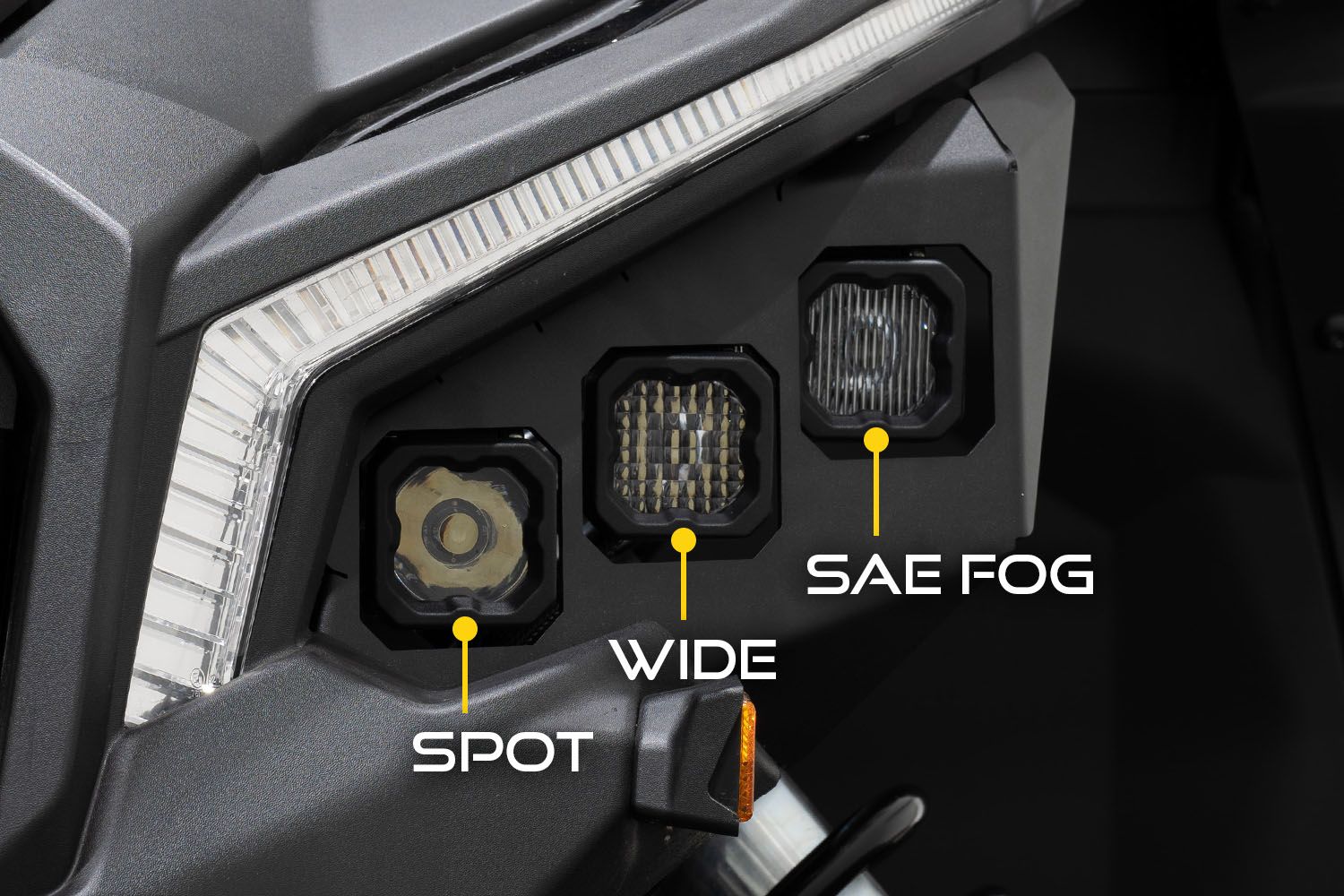

Beam Angle: Wide, 100°x8°, Spot, 6°x6°, Fog, 98°x9°
Power (watts): Main Beam: 19, Backlight: 0.3
Operating Voltage: 9-16V
Current (amps @ 12.8V): Main Beam: 1.5, Backlight: 0.024
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Cree XHP50
Connector(s): Deutsch DT Input
Driver Features: Constant Current
Materials: Polycarbonate Lens, Aluminum Casting, Rubber Gasket
Cooling: Passive, Pin-Fin heatsink
Compliance Ratings: SAE J575 Durability Test
Intrusion Ratings: IP67 Weatherproof
